Aft Port Cabin

Overview

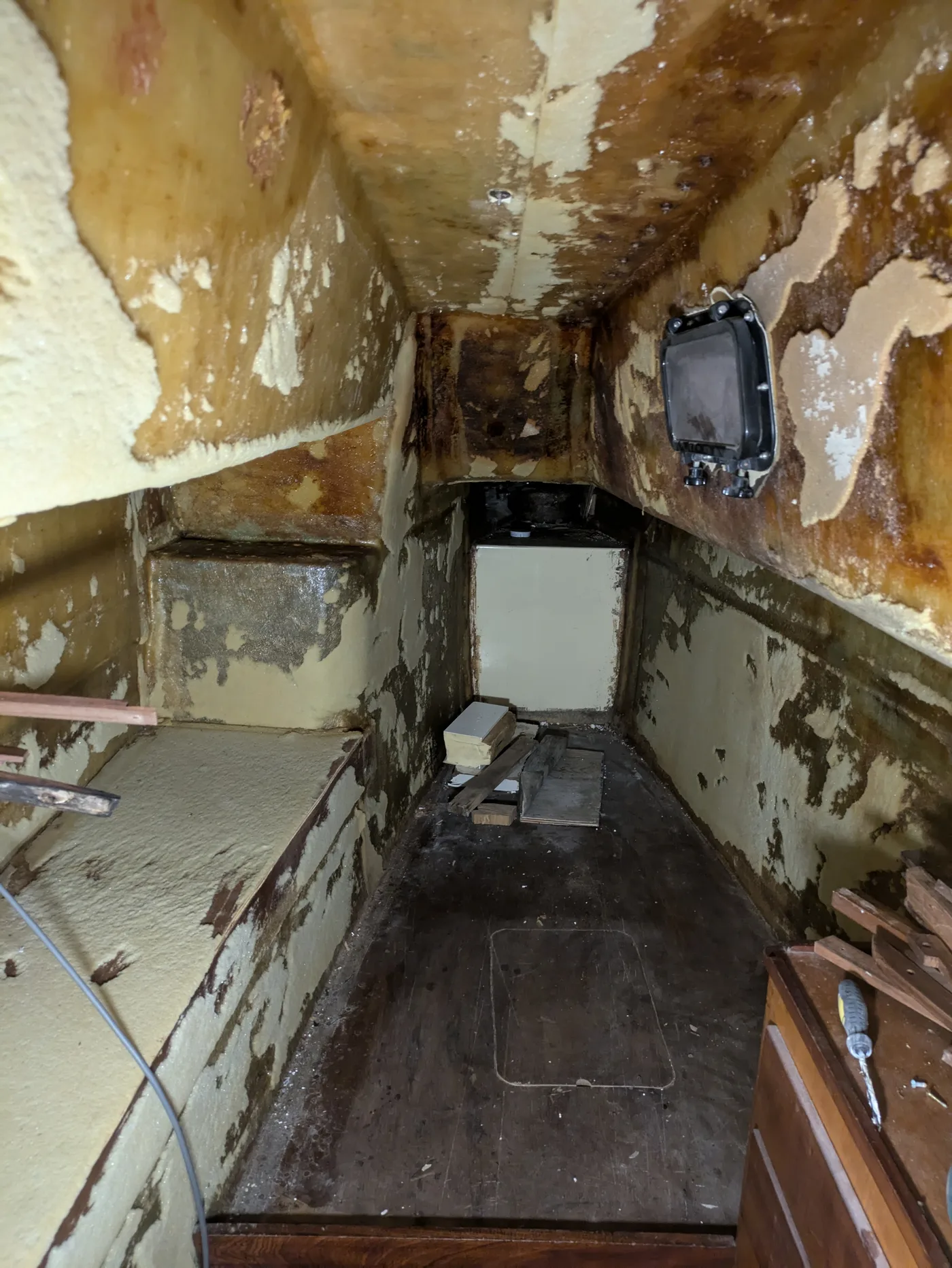

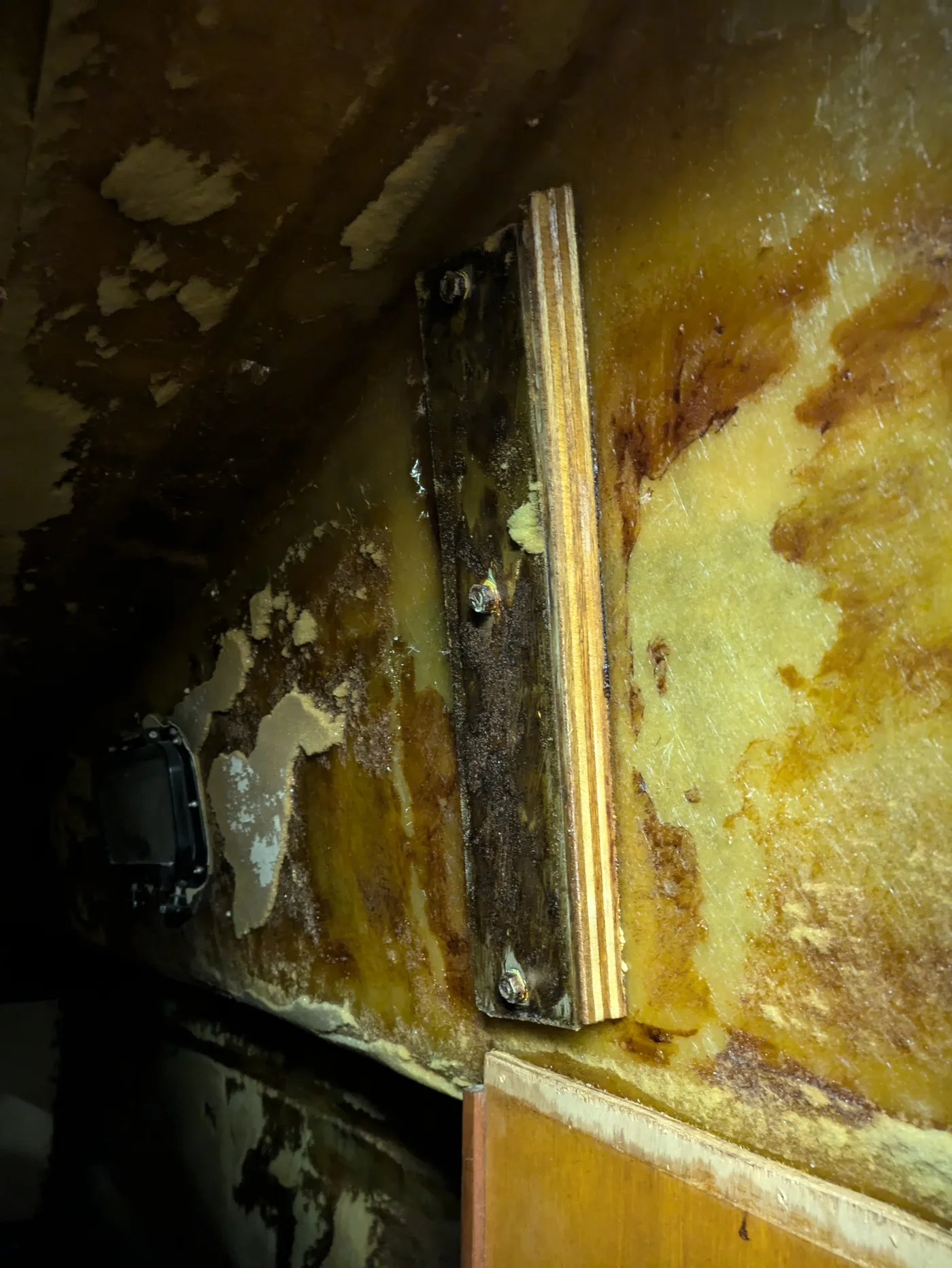

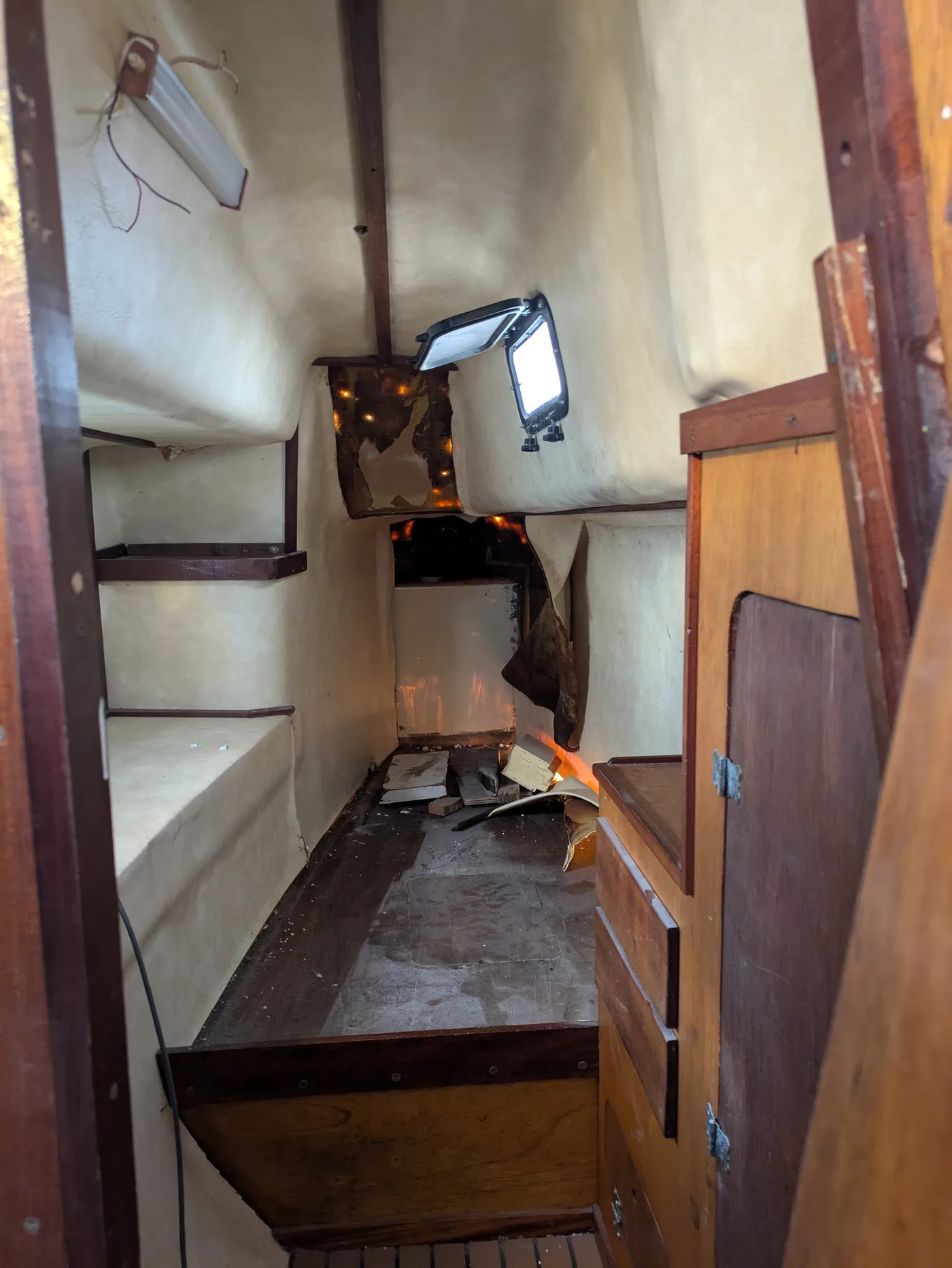

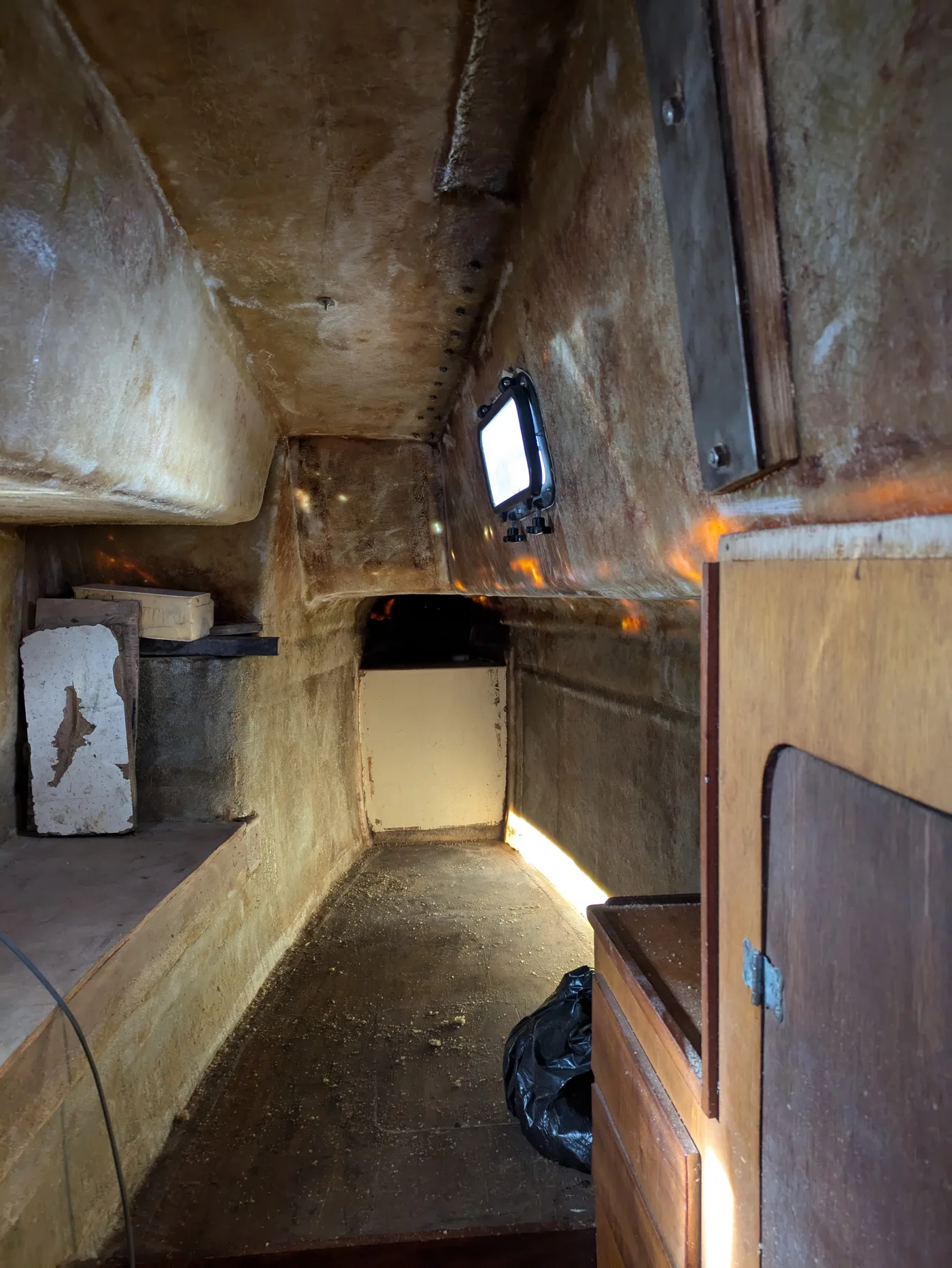

Similar story across all the interior - the original insulation and lining was all shot. Either water damaged or just old and crap. This was completely stripped - a job I still have PTSD over, really horrible work.

Painting Mistake

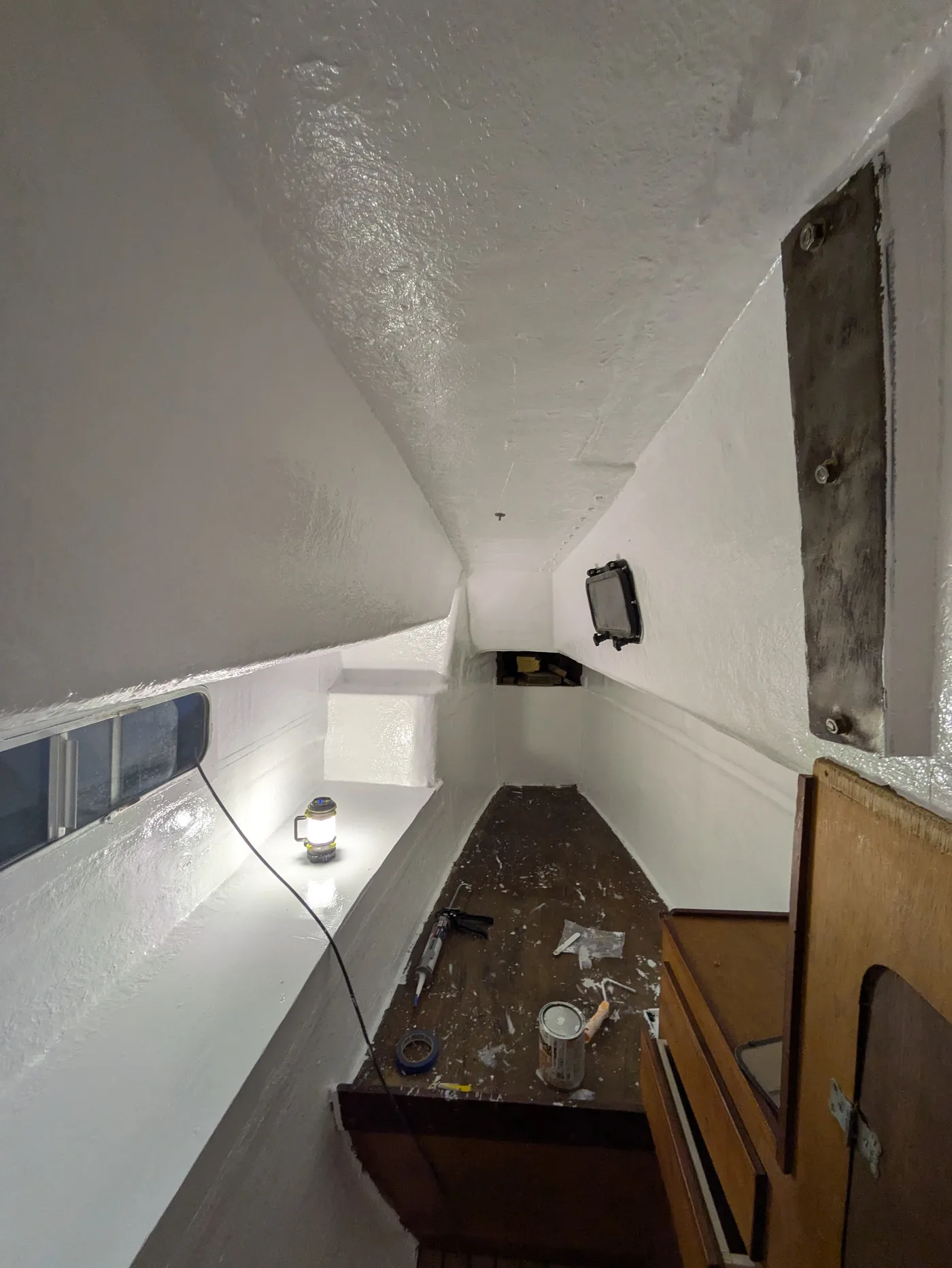

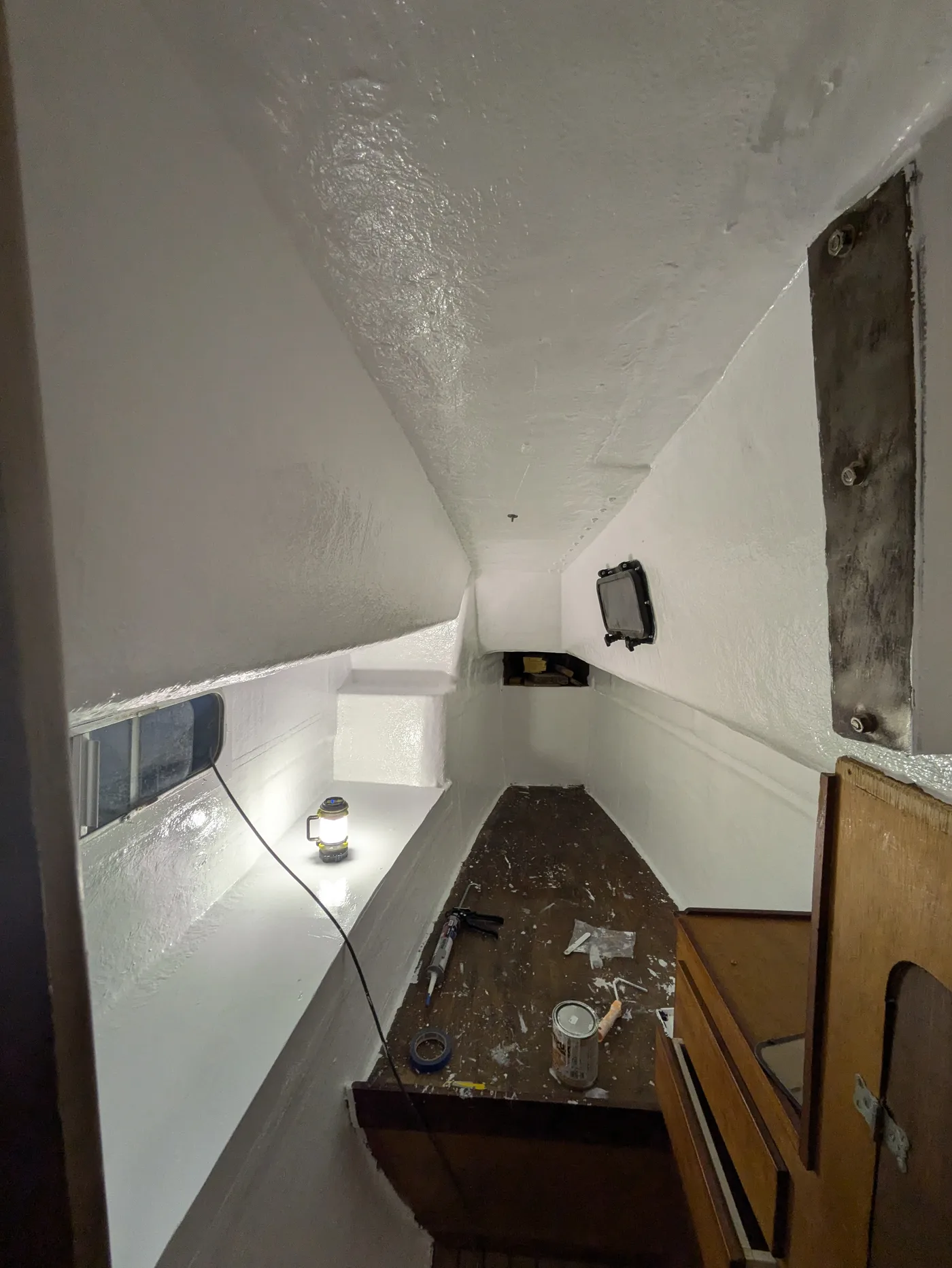

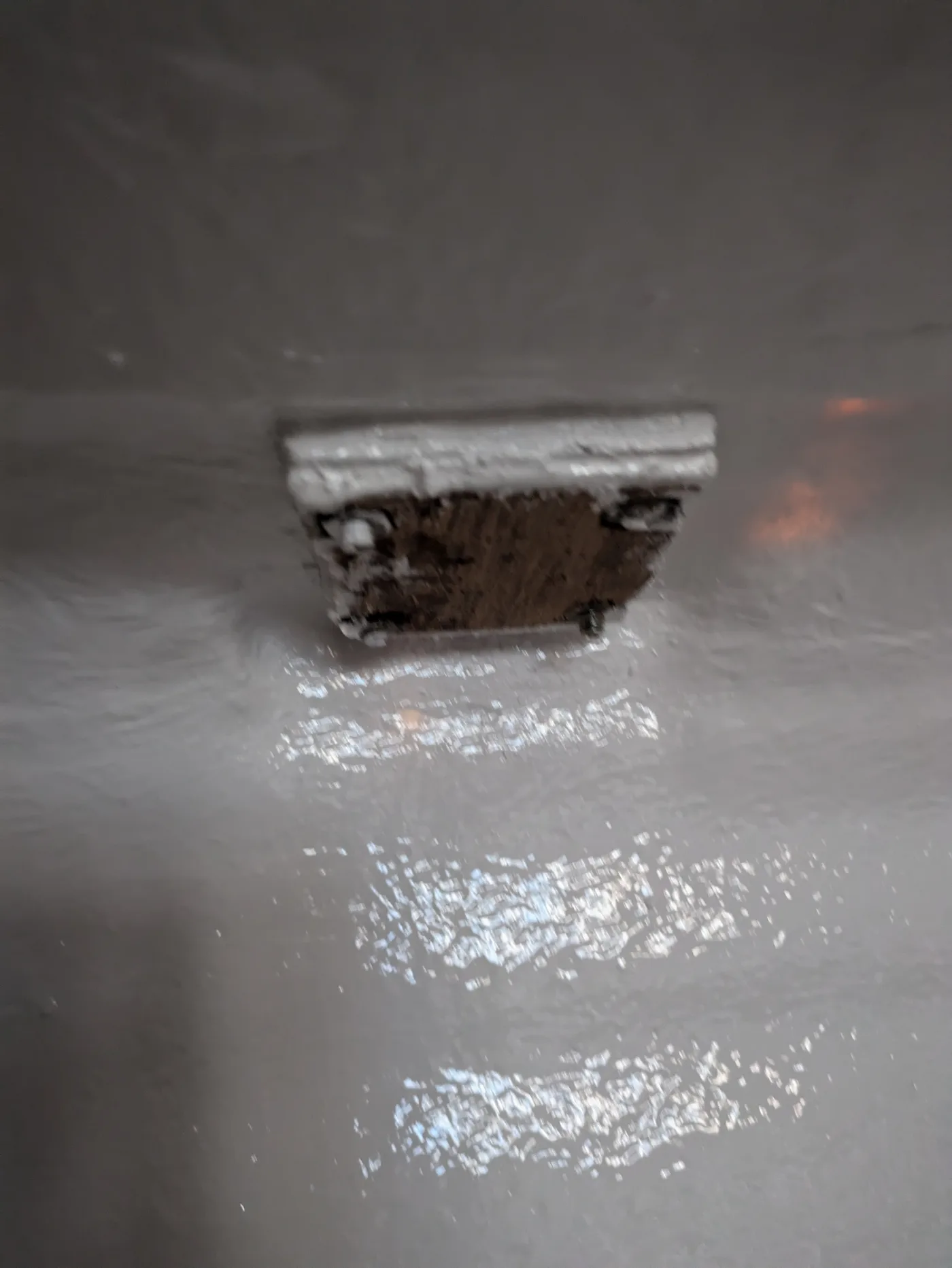

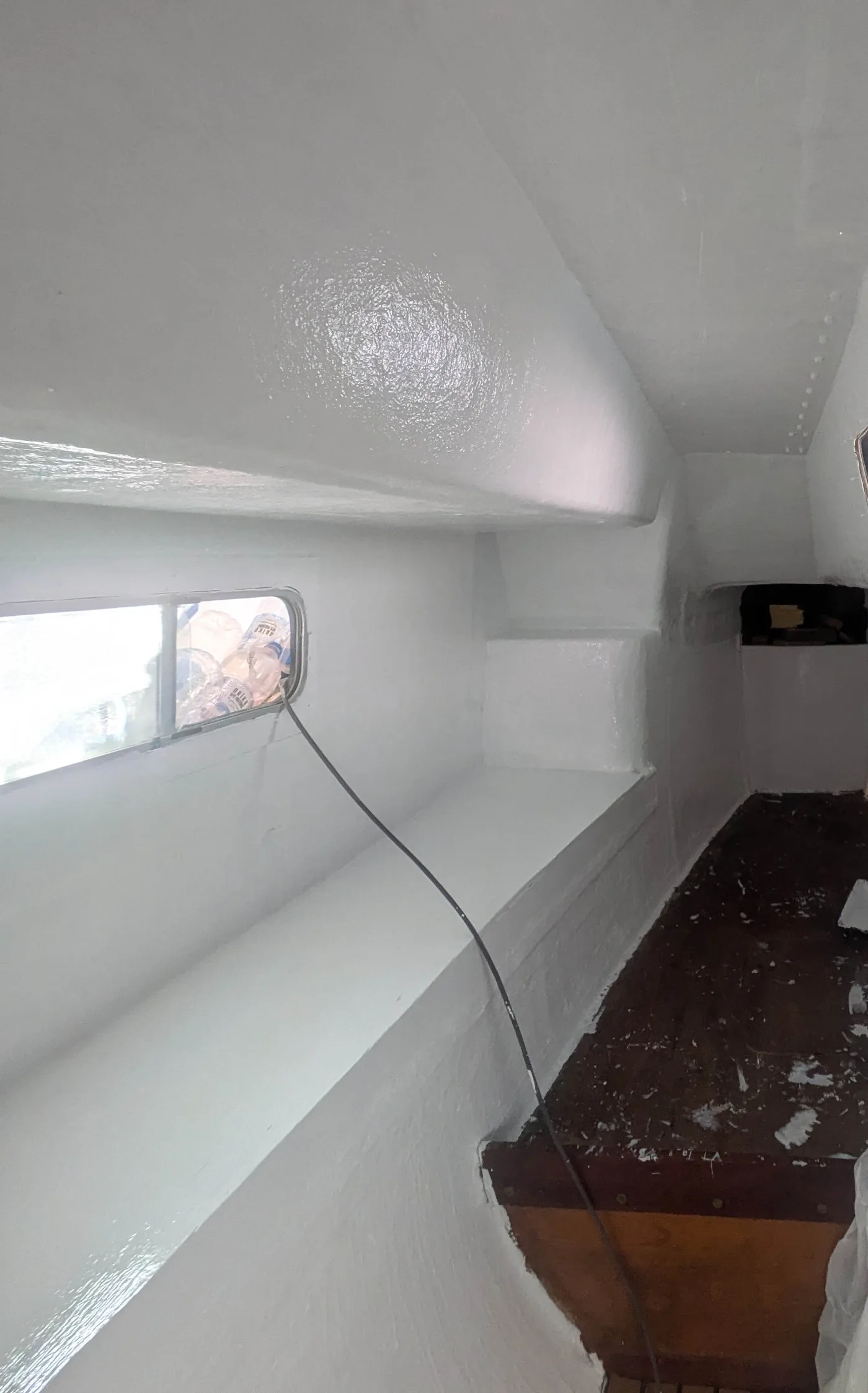

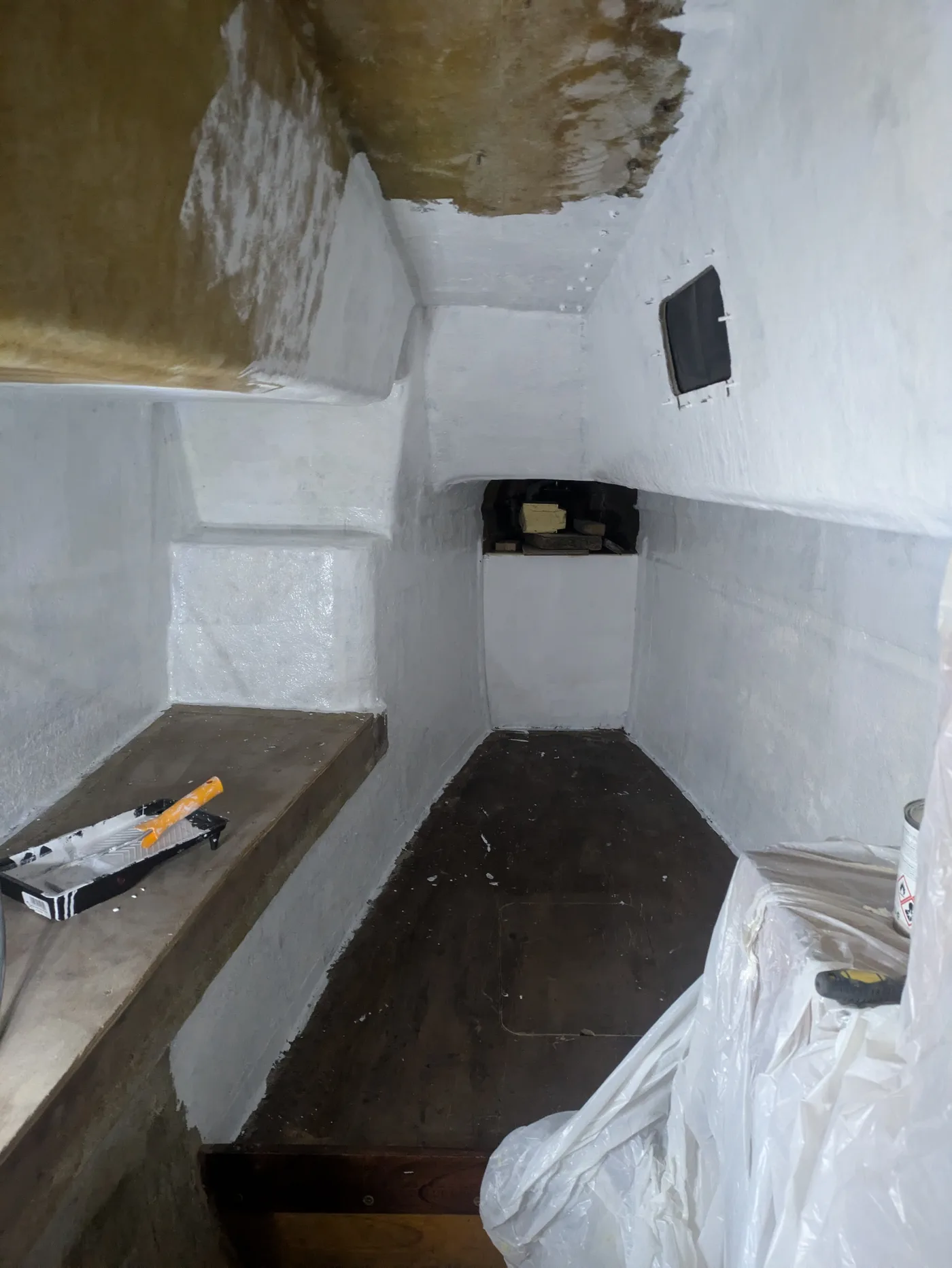

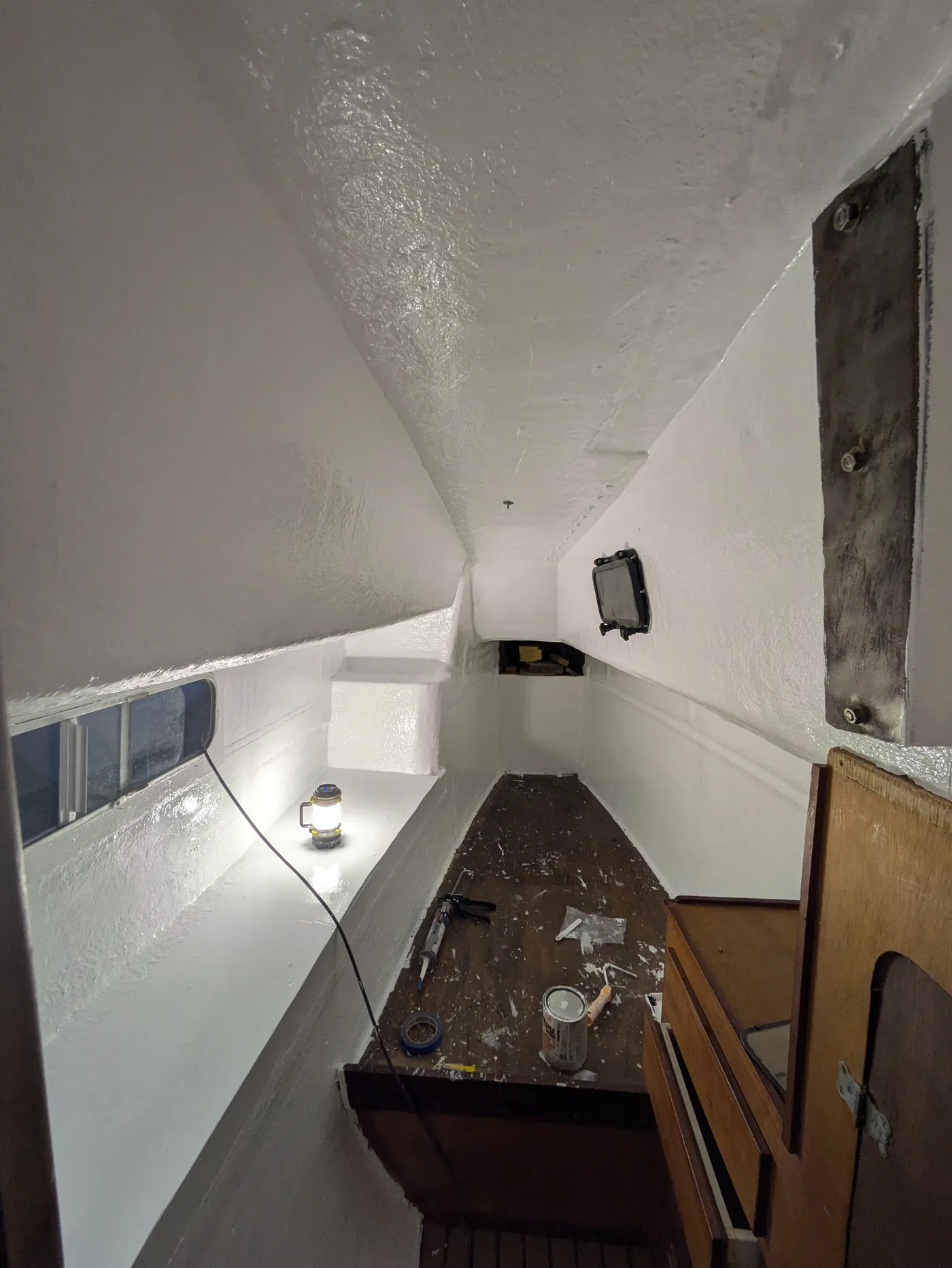

My first approach was to just paint the interior, so the bare fibreglass was primed and painted. The condensation was quick to appear and I realised my mistake, so this was sanded back to key it for proper insulation and finishing installation

10mm closed cell foam & carpet lining

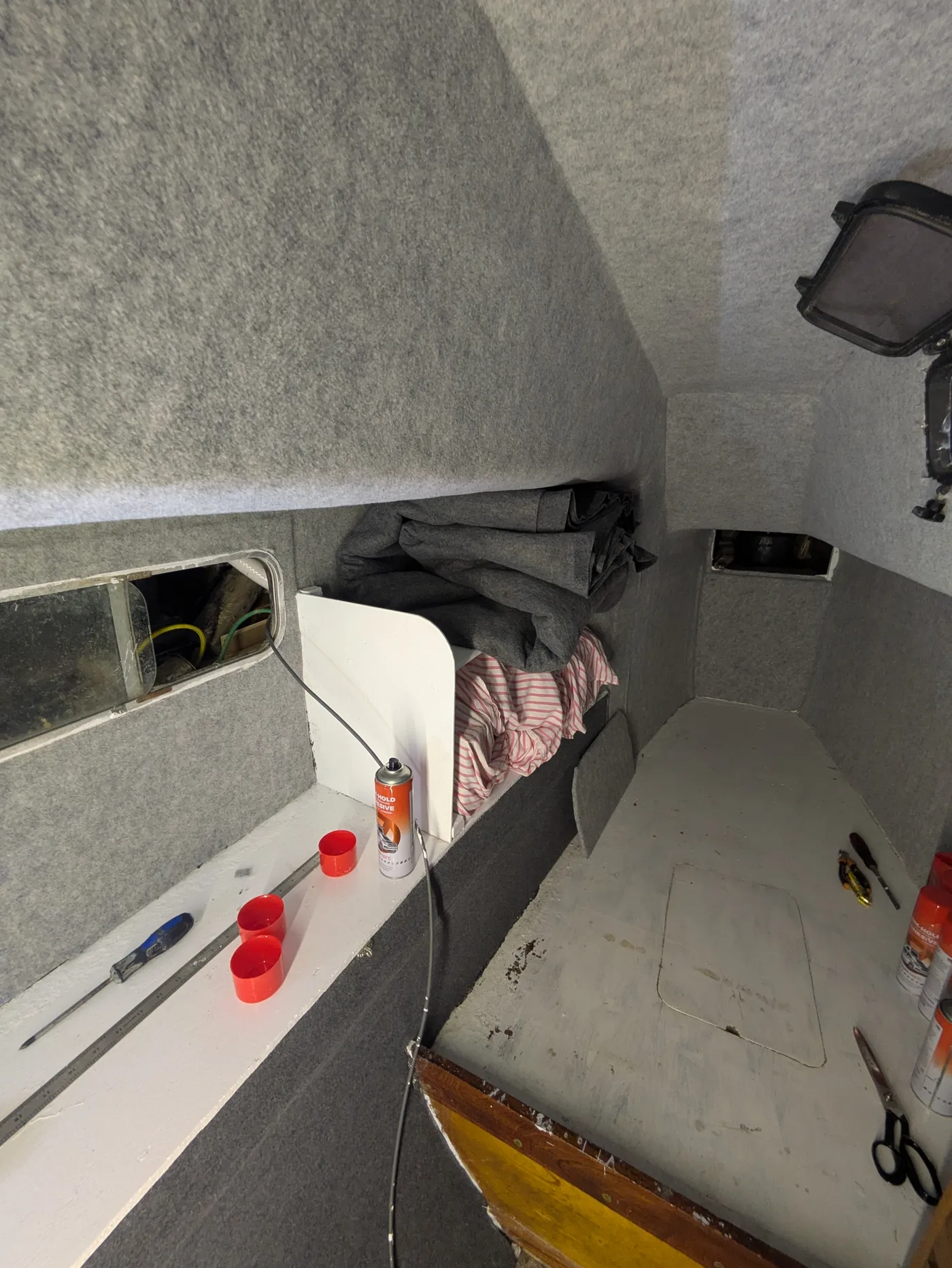

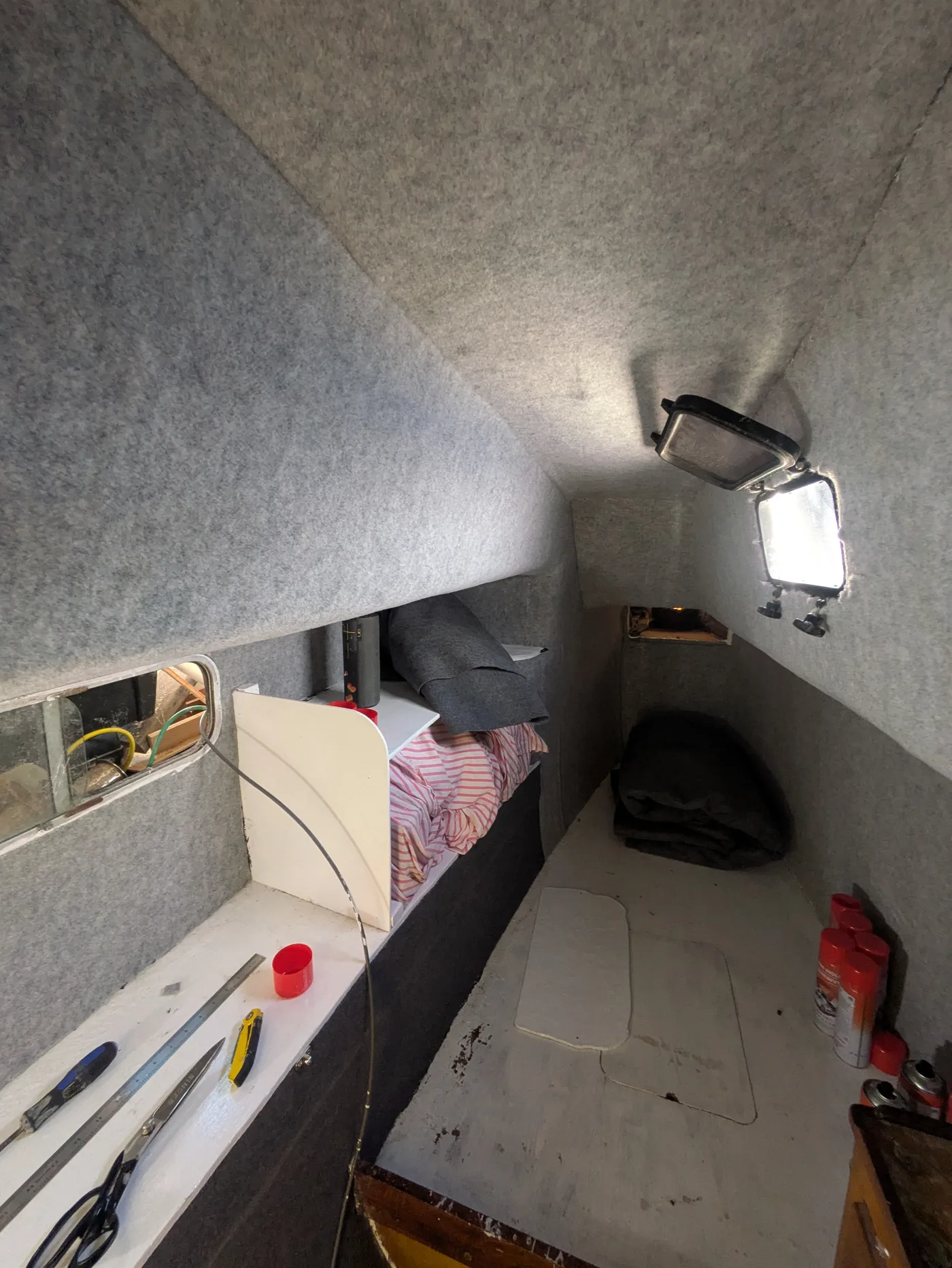

Lots of 10mm closed cell foam was used to insulate the interior. Although it’s self-adhesive, I also used spray glue to try avoid gaps. This was then covered in carpet lining (attached with spray glue).

LED Lighting & USB ports

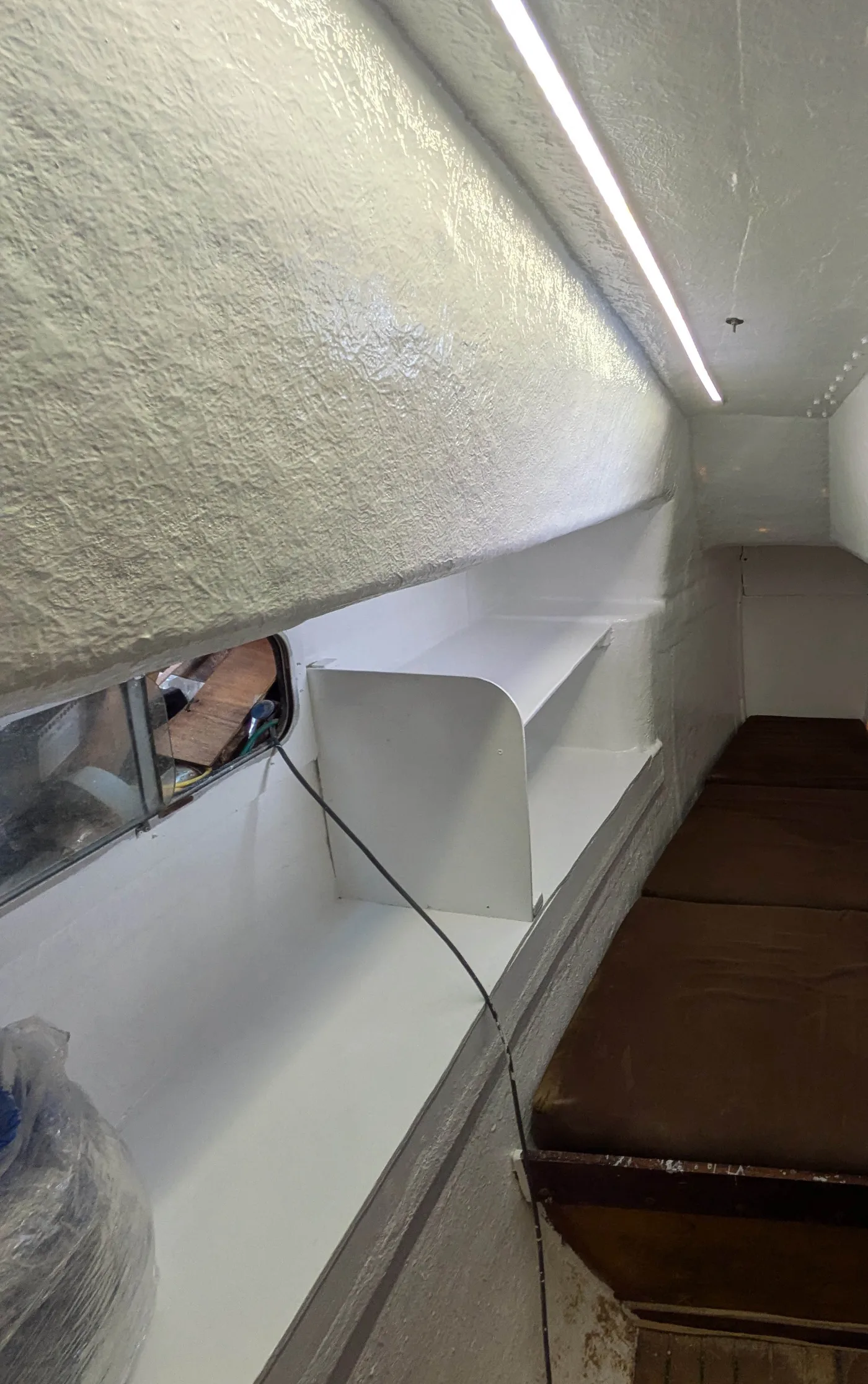

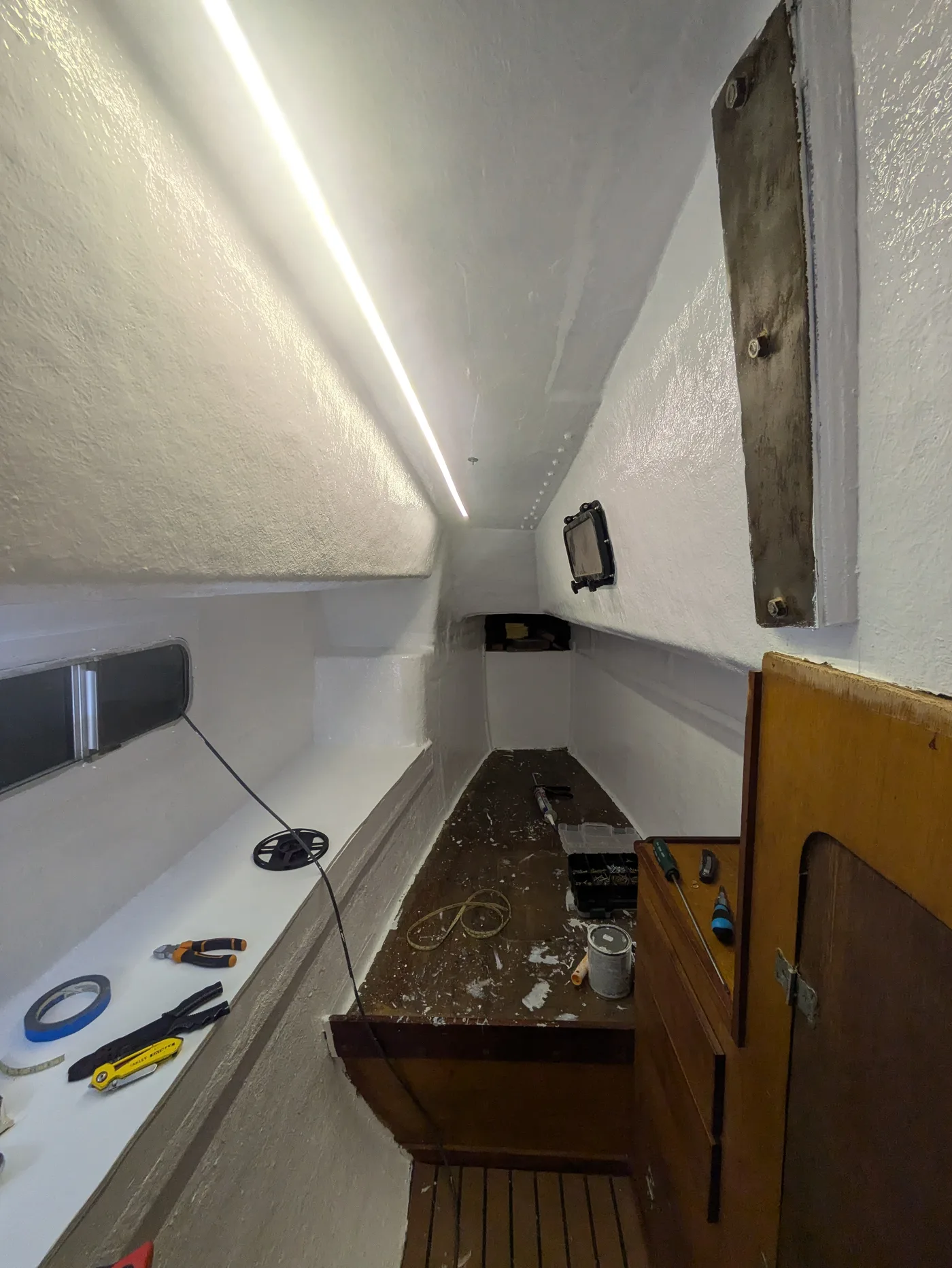

LED lighting was fitted, both overhead and lower power spots. Also USB sockets fitted. There’s separate circuits for different parts of the boat, but it’s not quite 1 circuit per cabin.

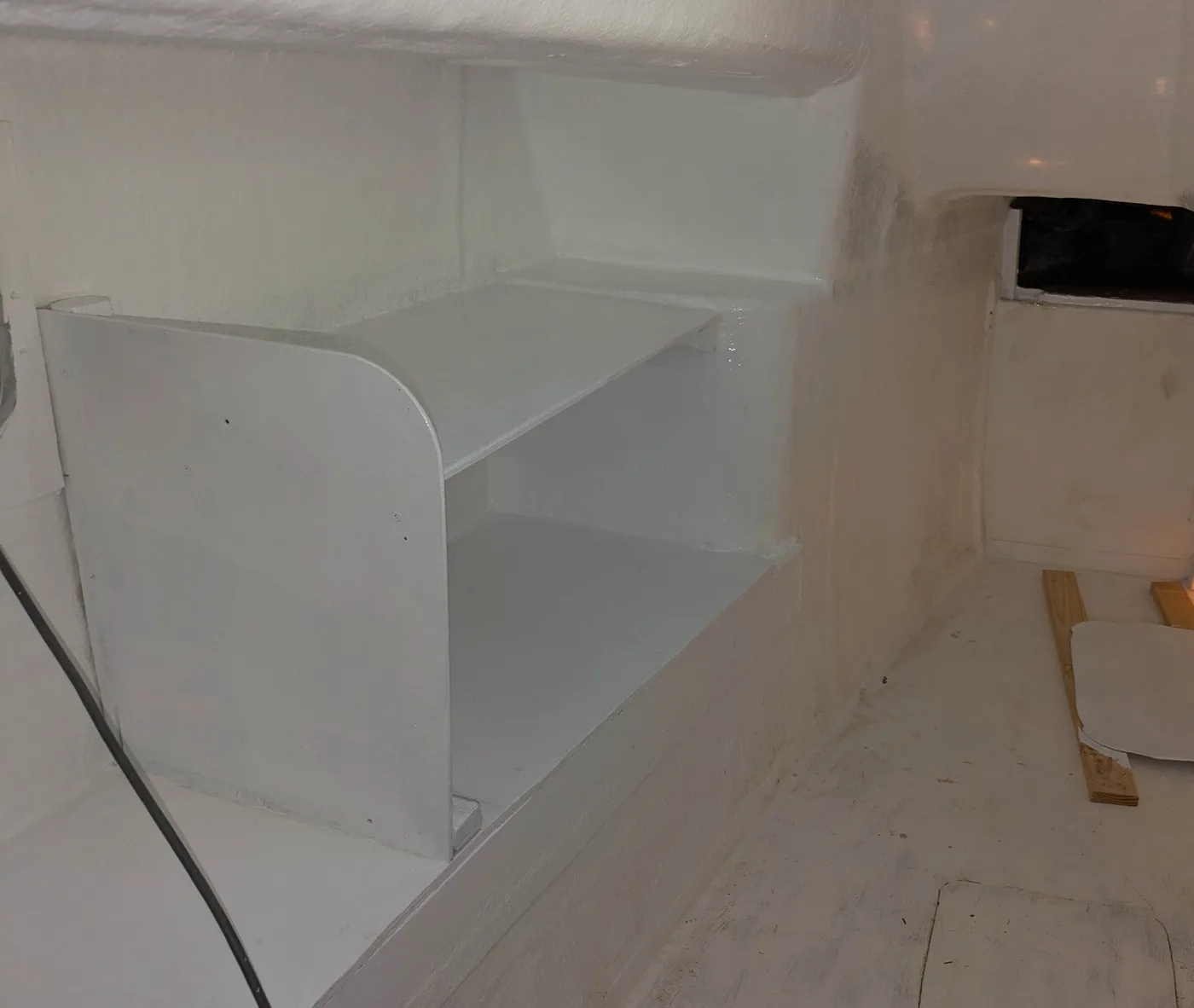

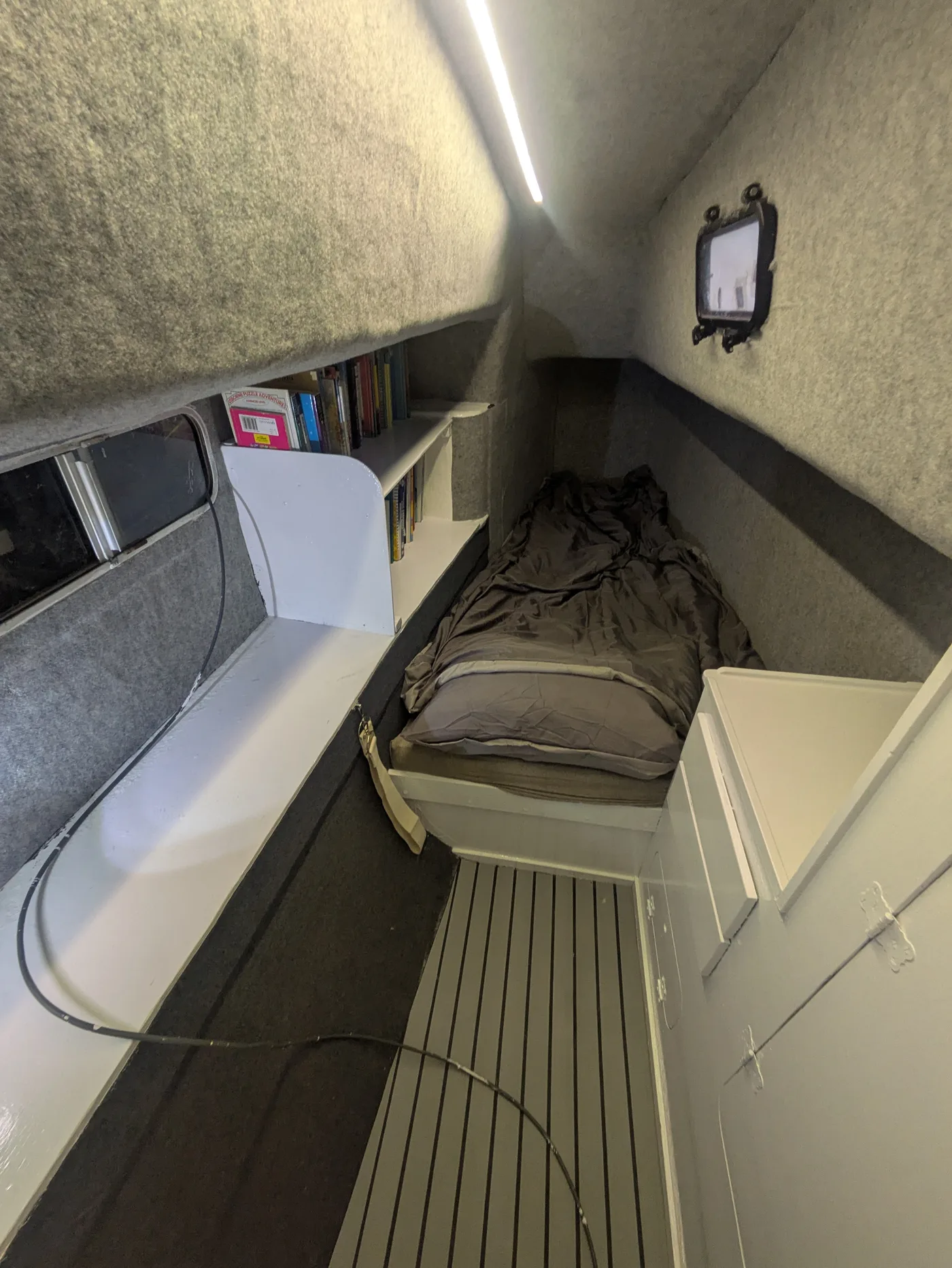

Shelving, Access Panels, Windows

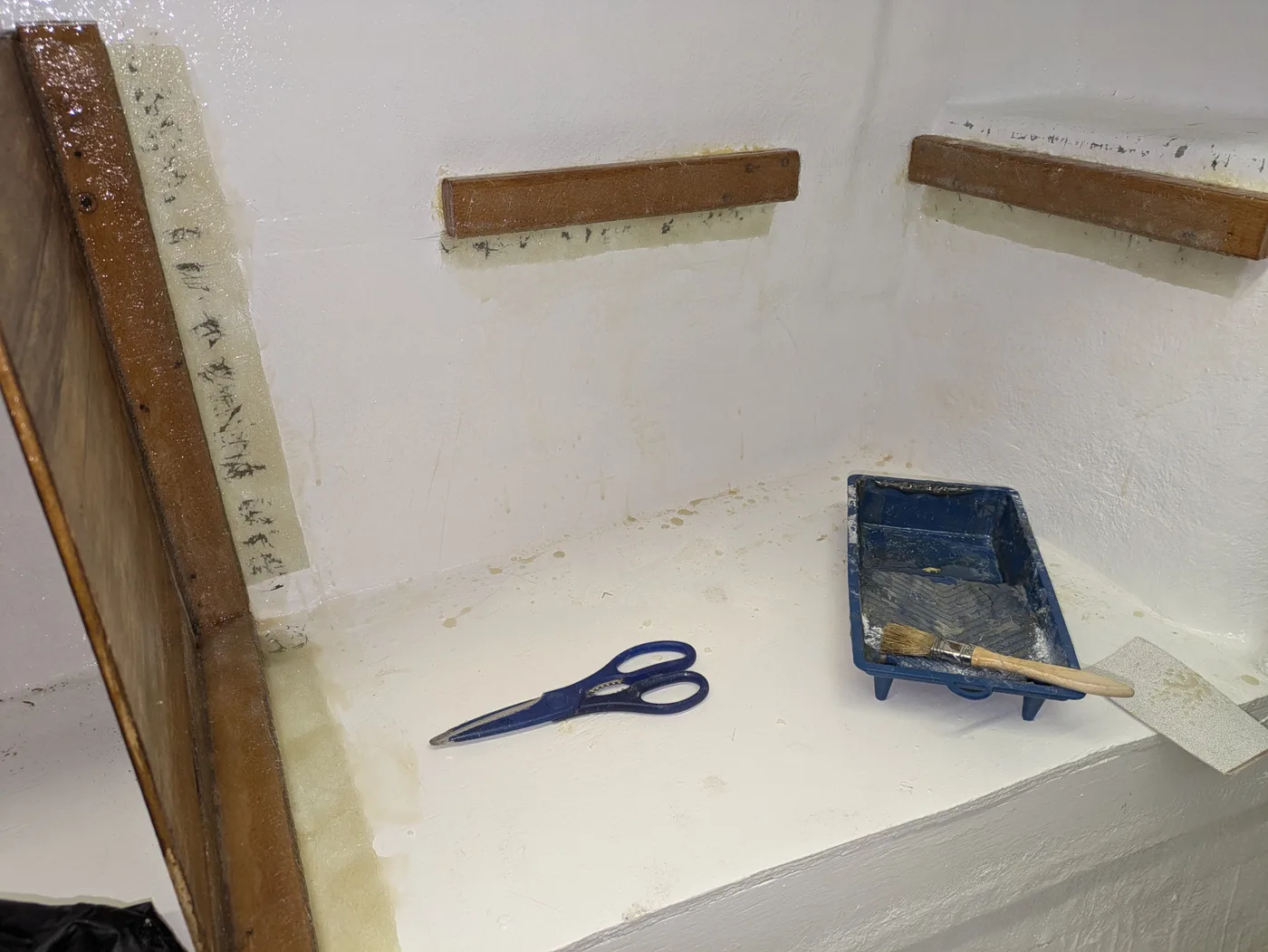

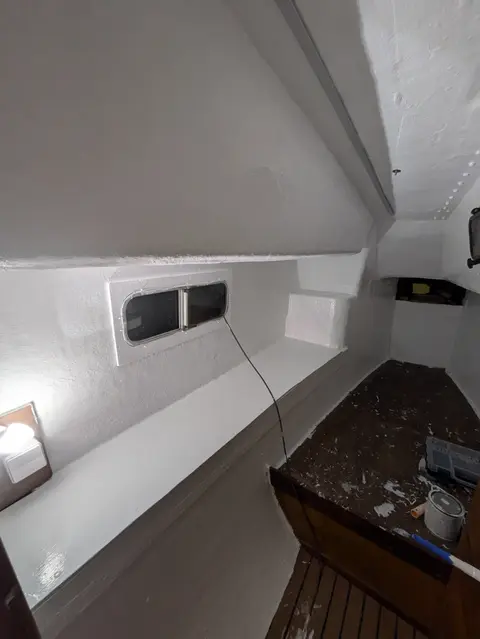

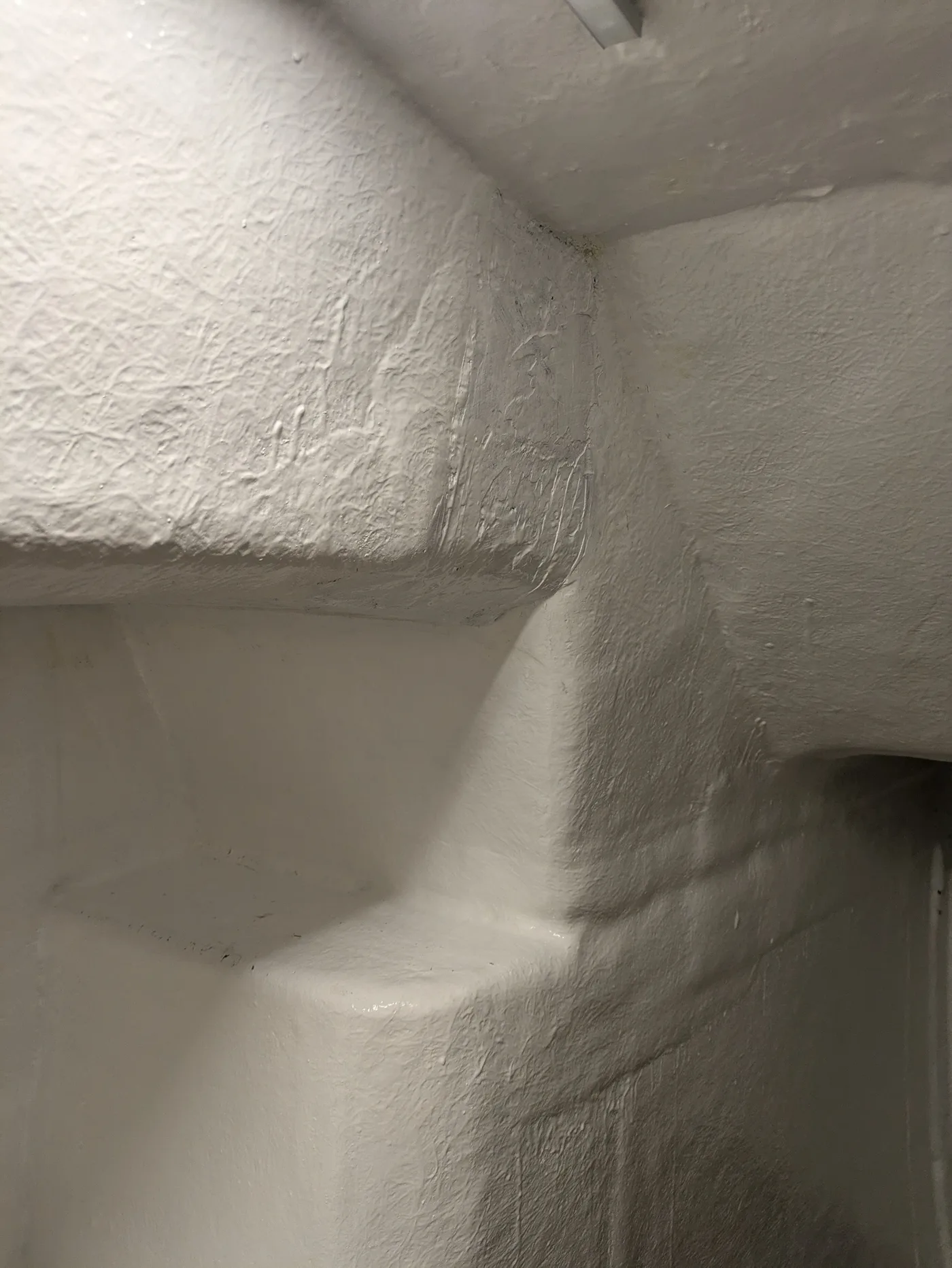

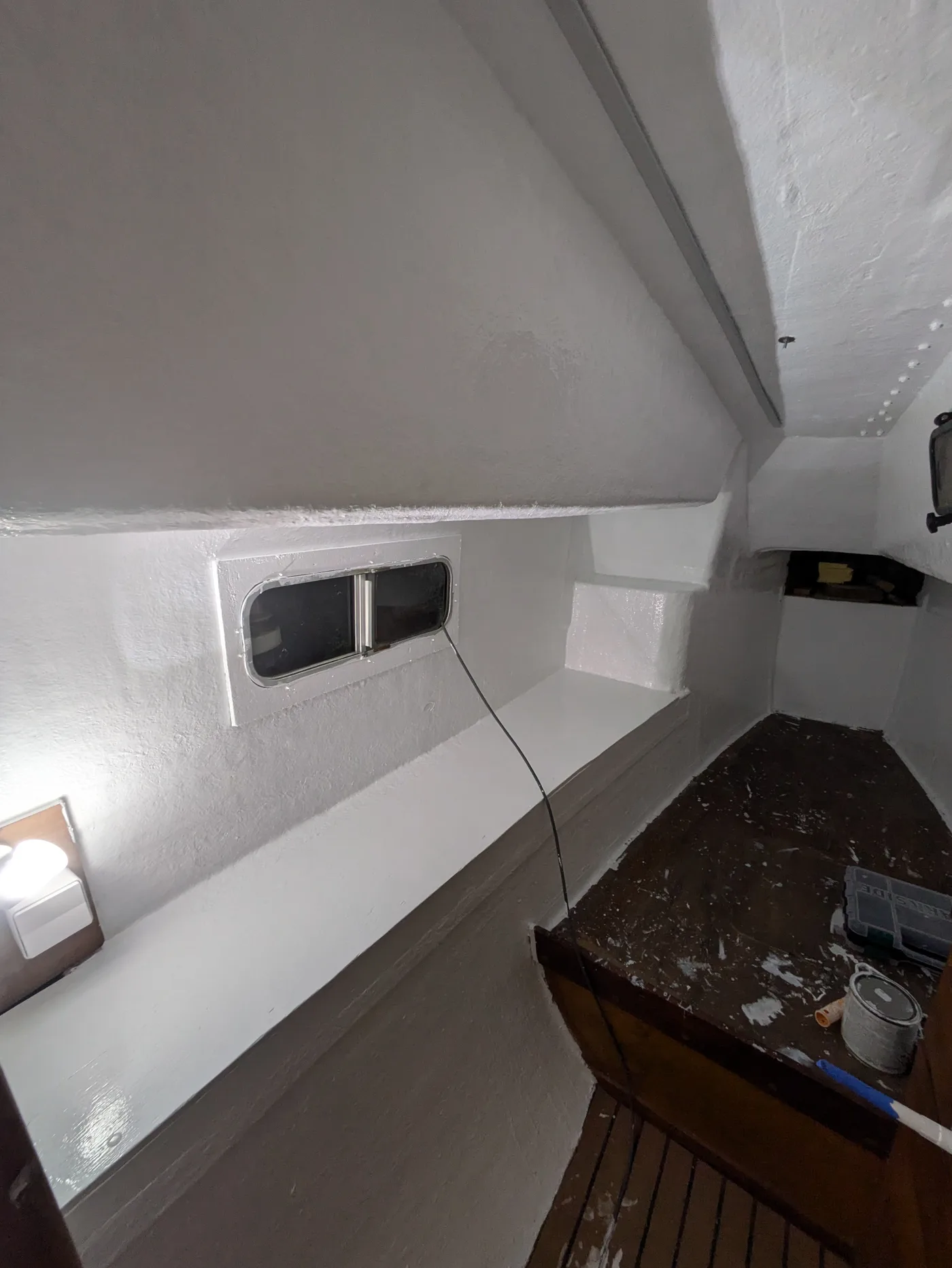

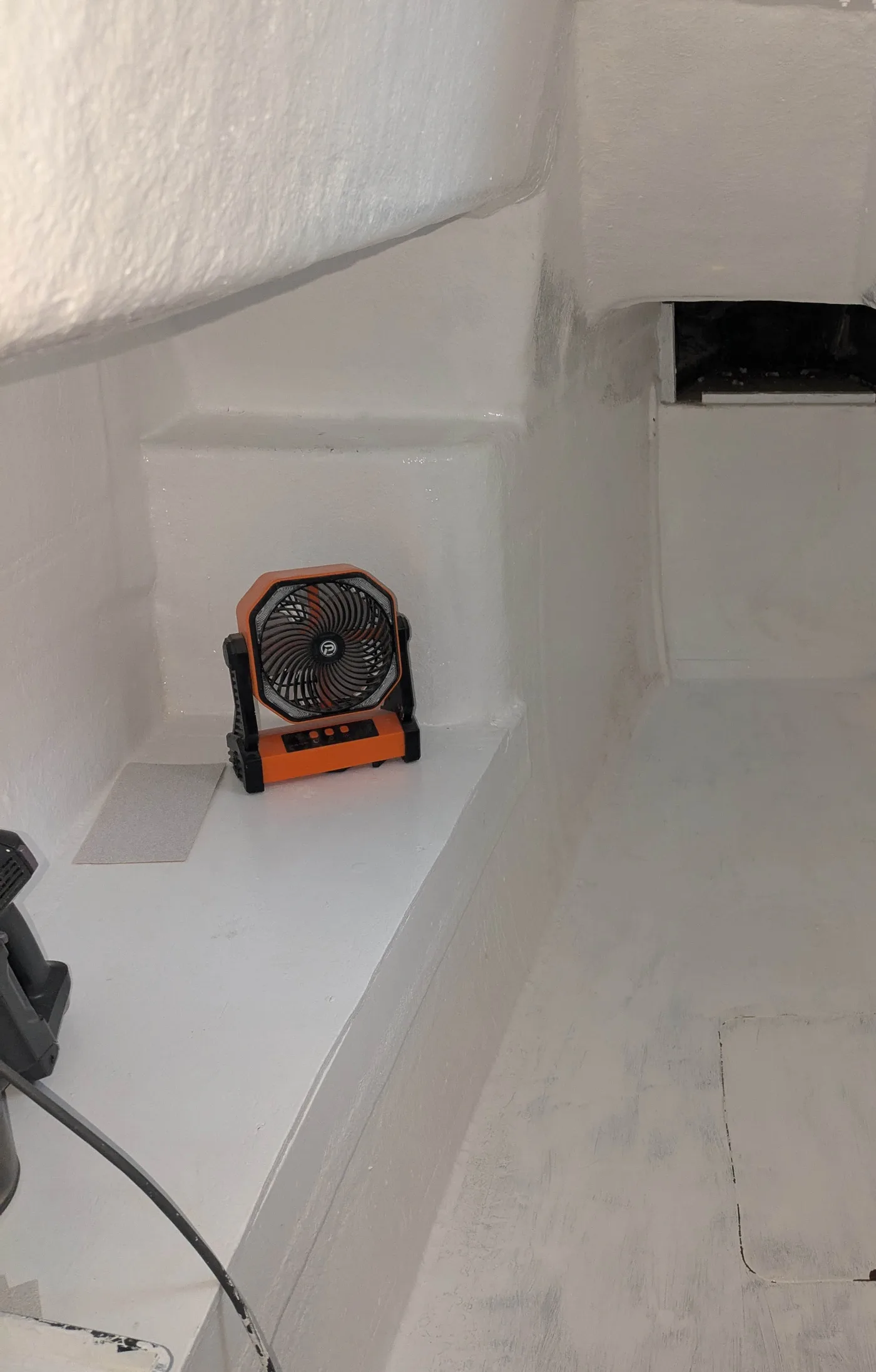

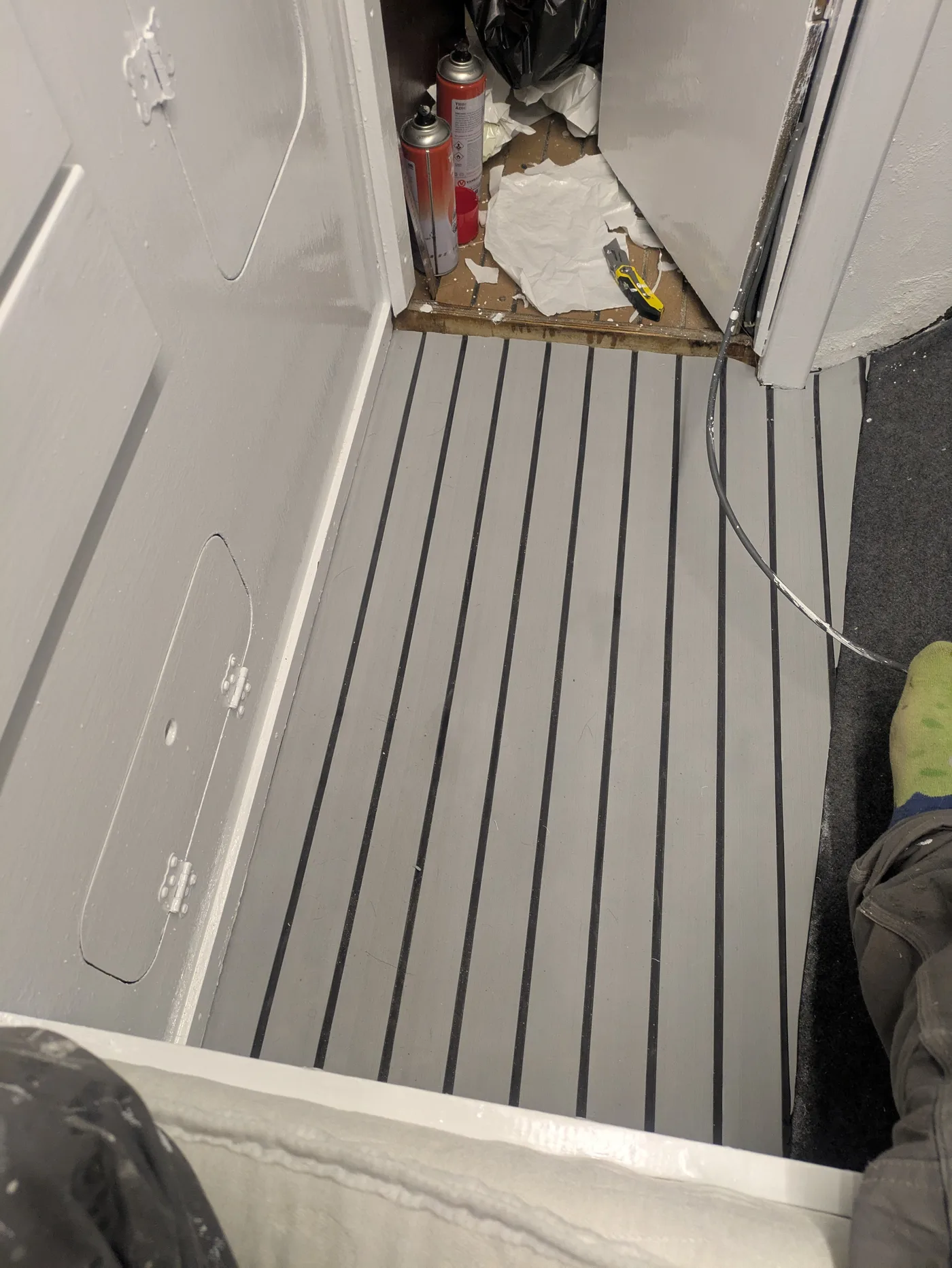

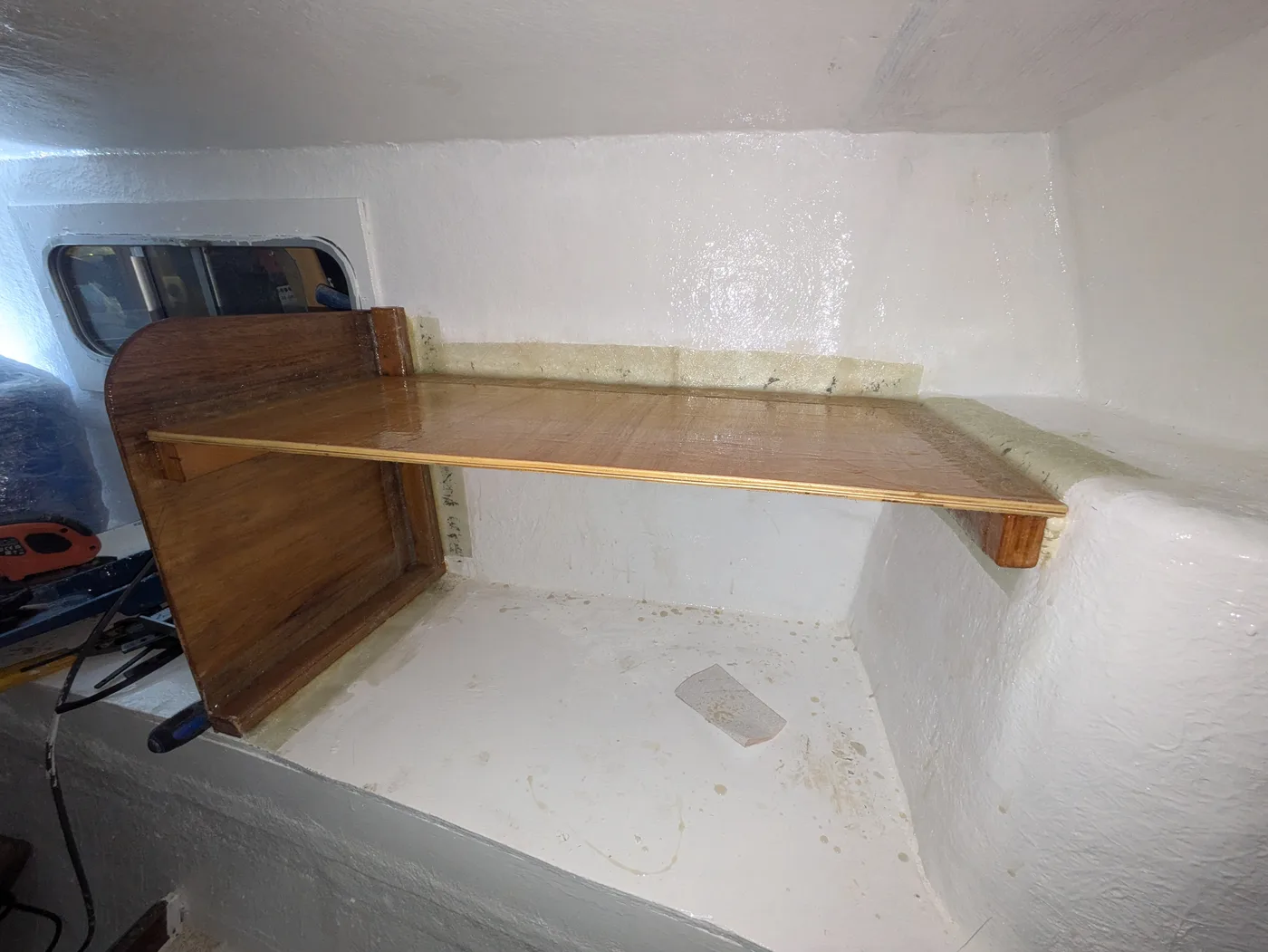

As the intention was to have a live-aboard with my kids, the shelving needed to be robust! So simple shelves were build and fibreglassed in to make them strong. An access panel was built to access the rudder top mounts at the rear. Windows were resealed. Everything primed and painted, and new foam flooring installed.

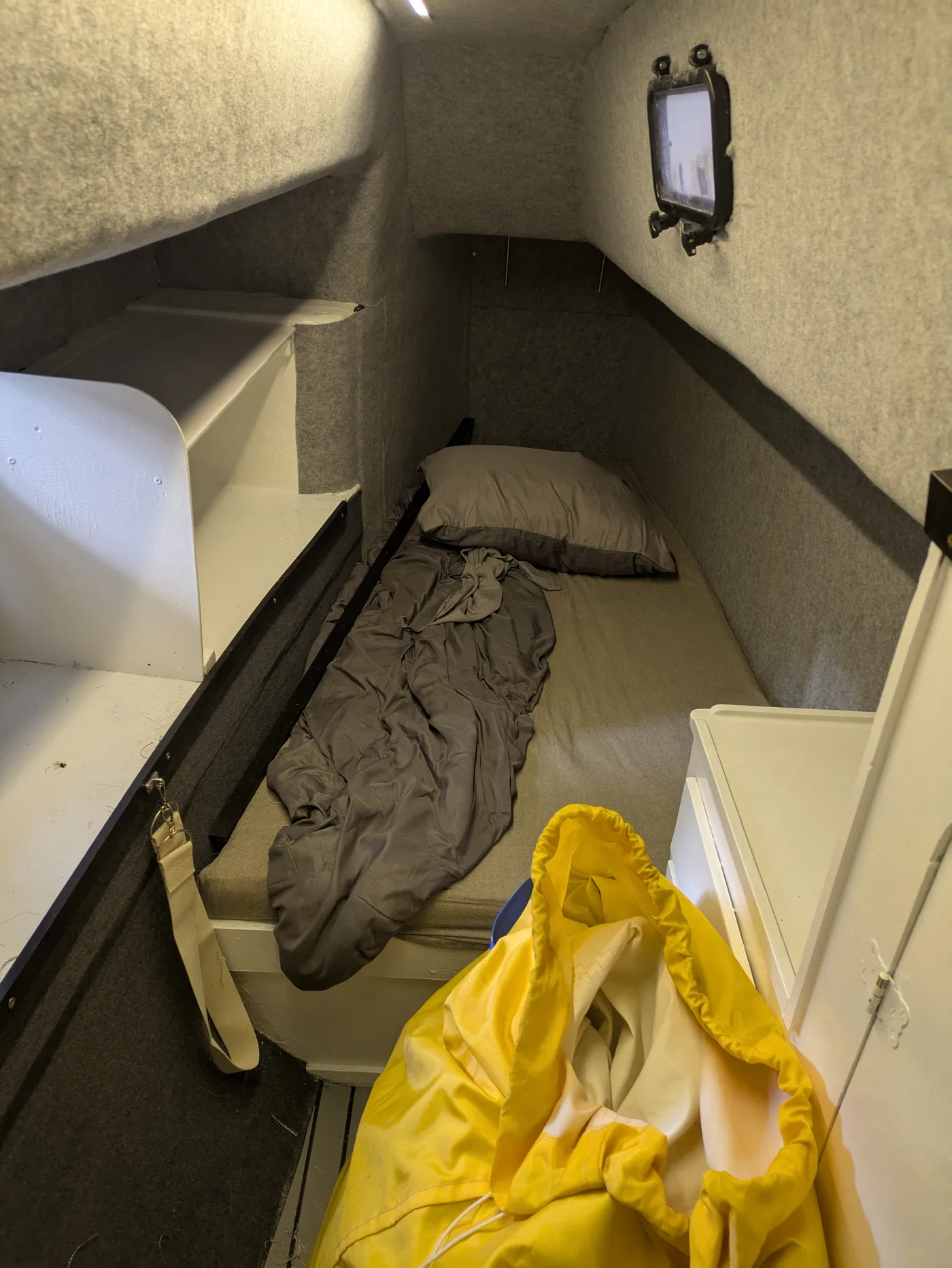

Mattress

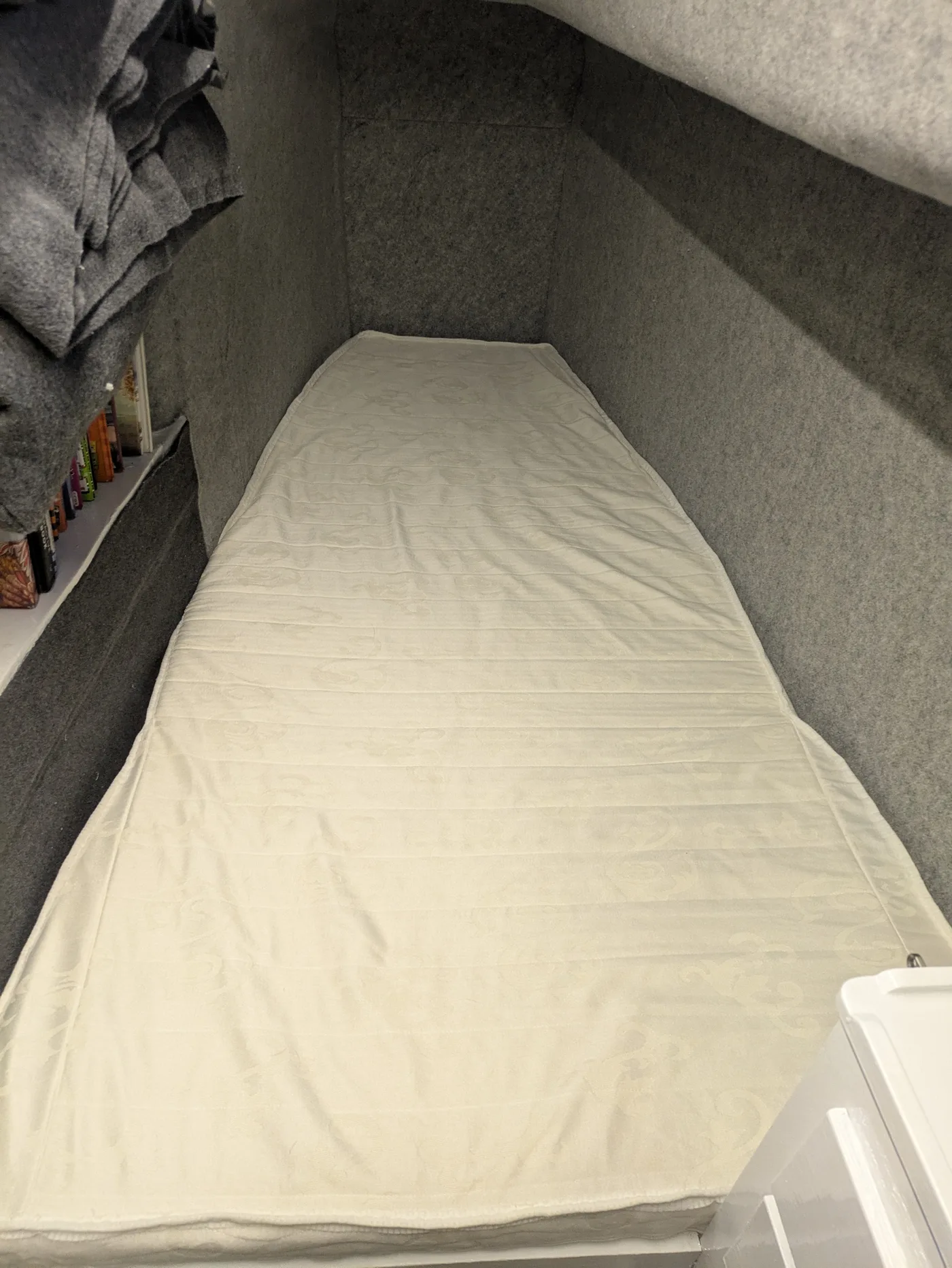

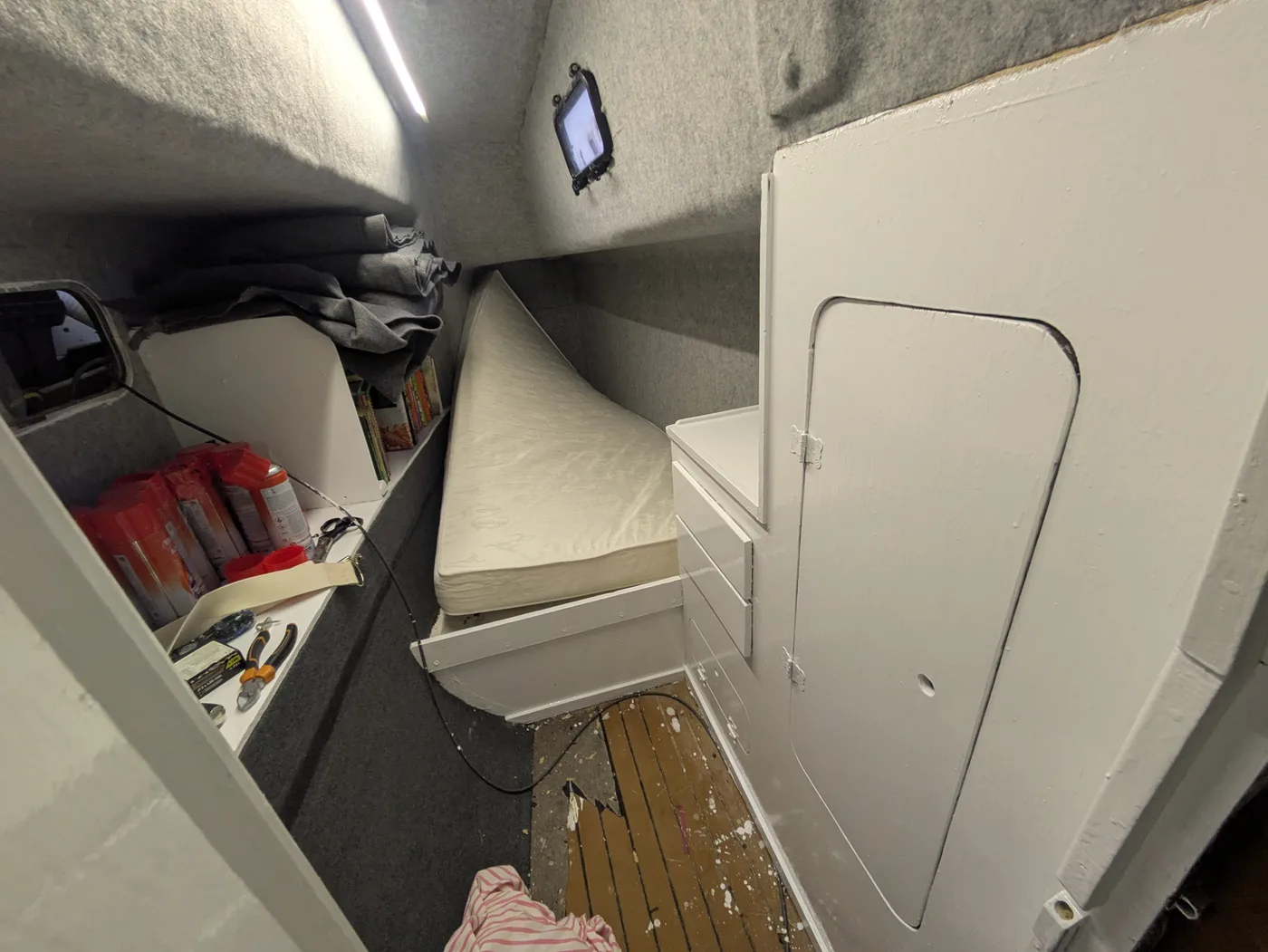

Ikea single mattress was cut to the shape of the sleep area. The old 3 part cushions were disposed off, and a single piece mattress used instead. Much more comfy and meet the goal of being live-aboard ready.
